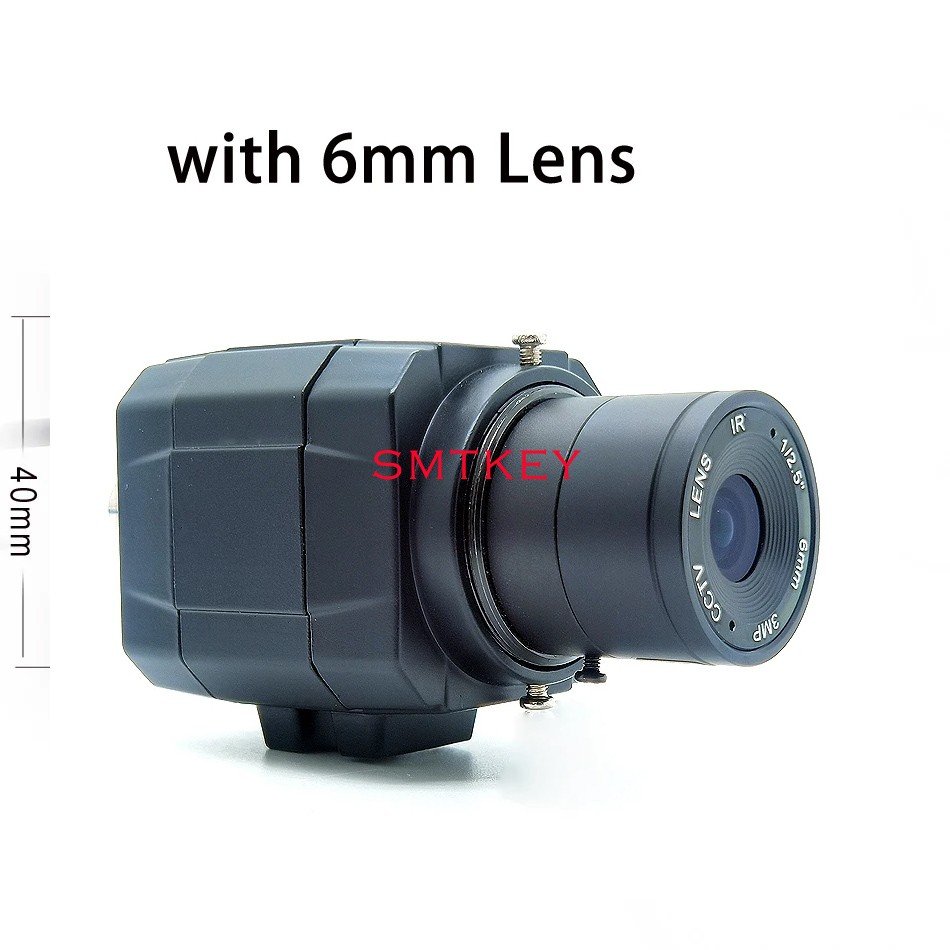

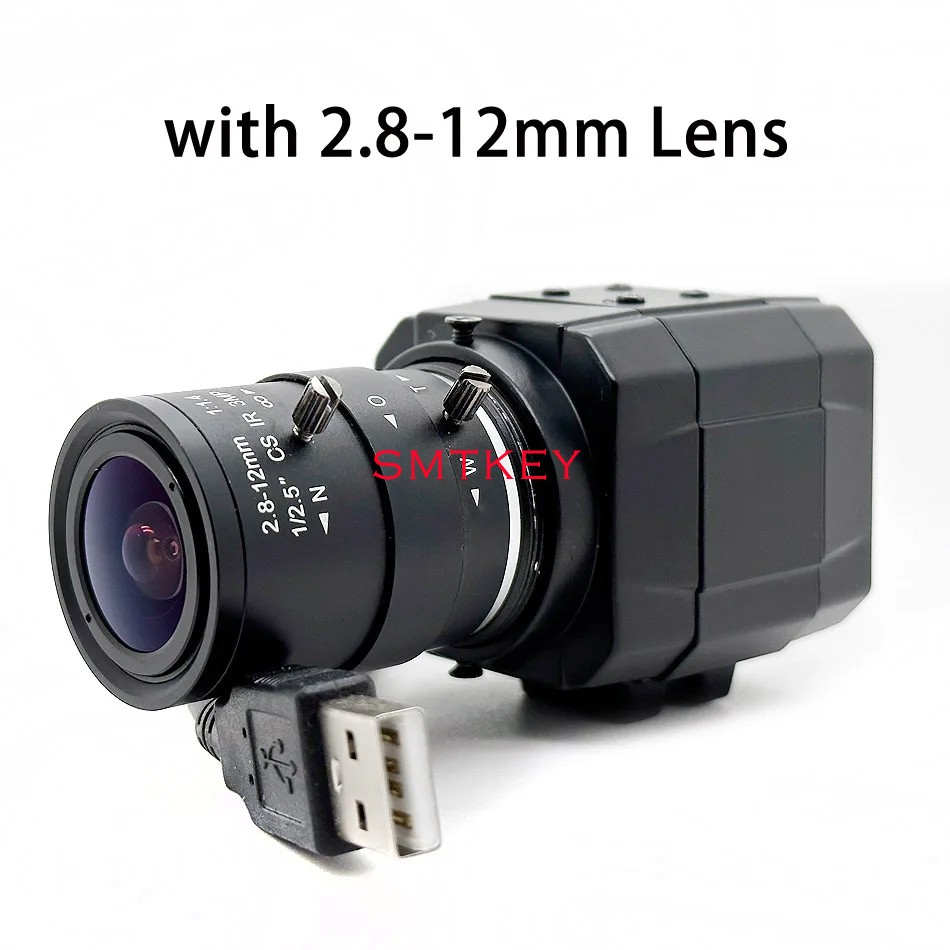

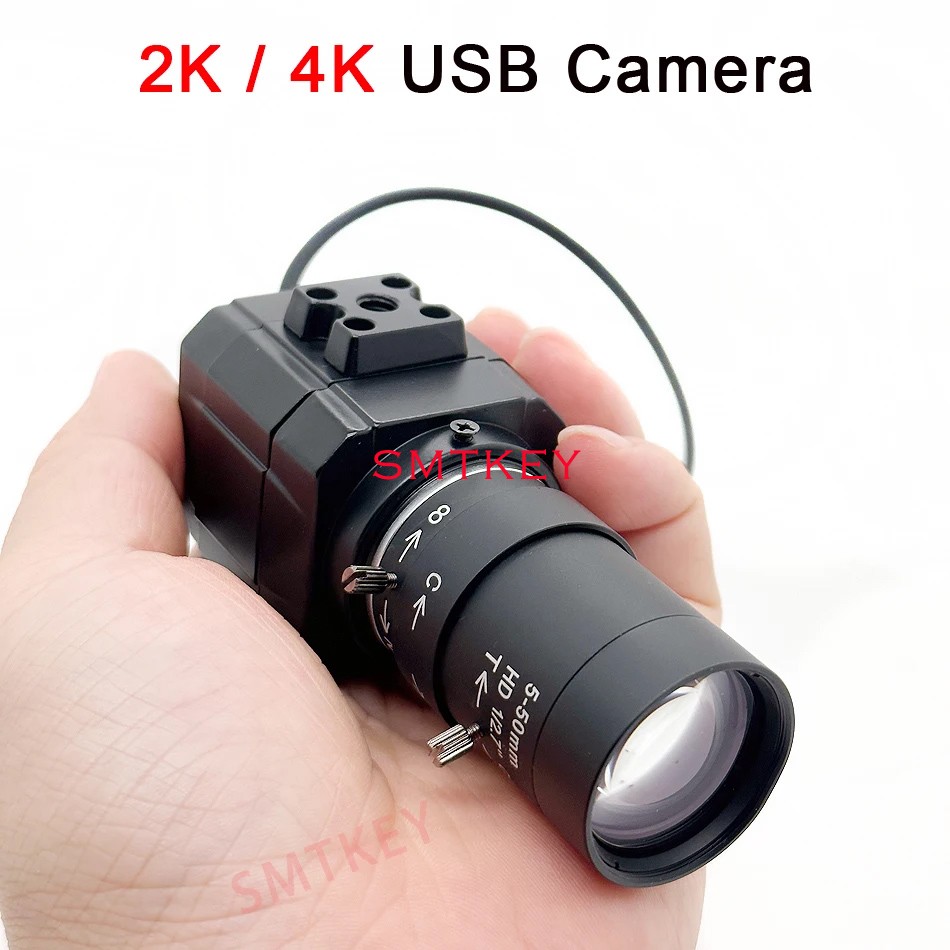

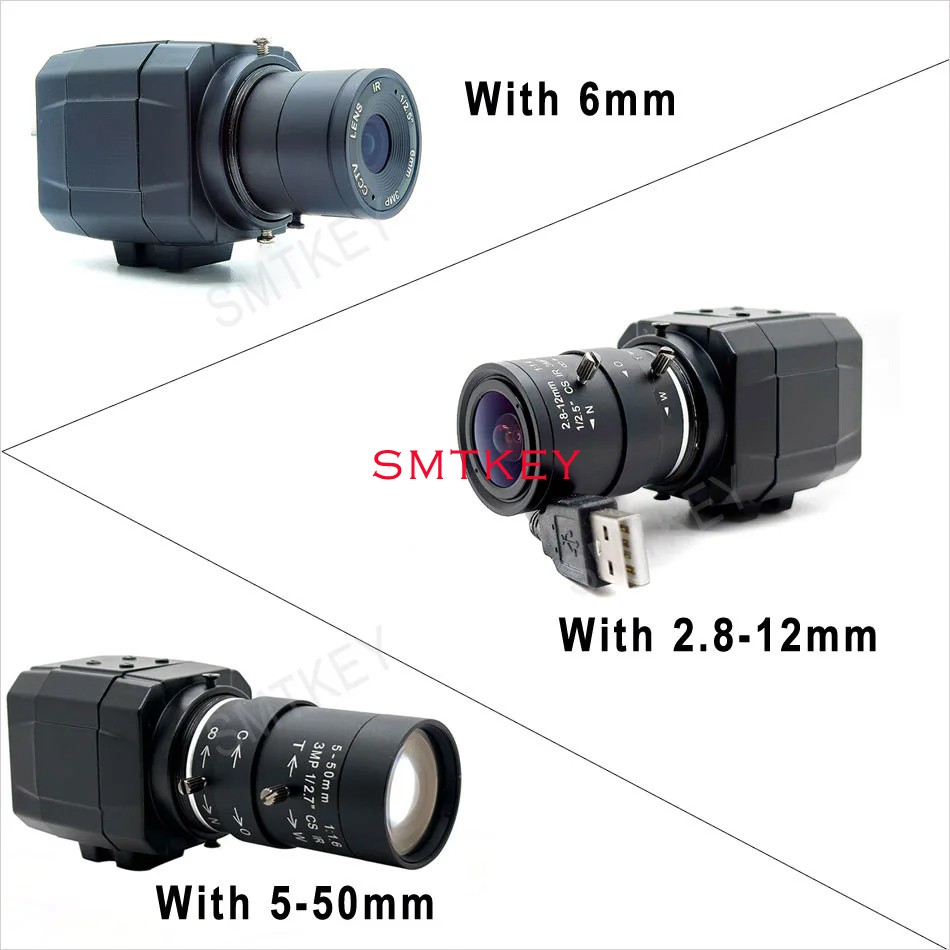

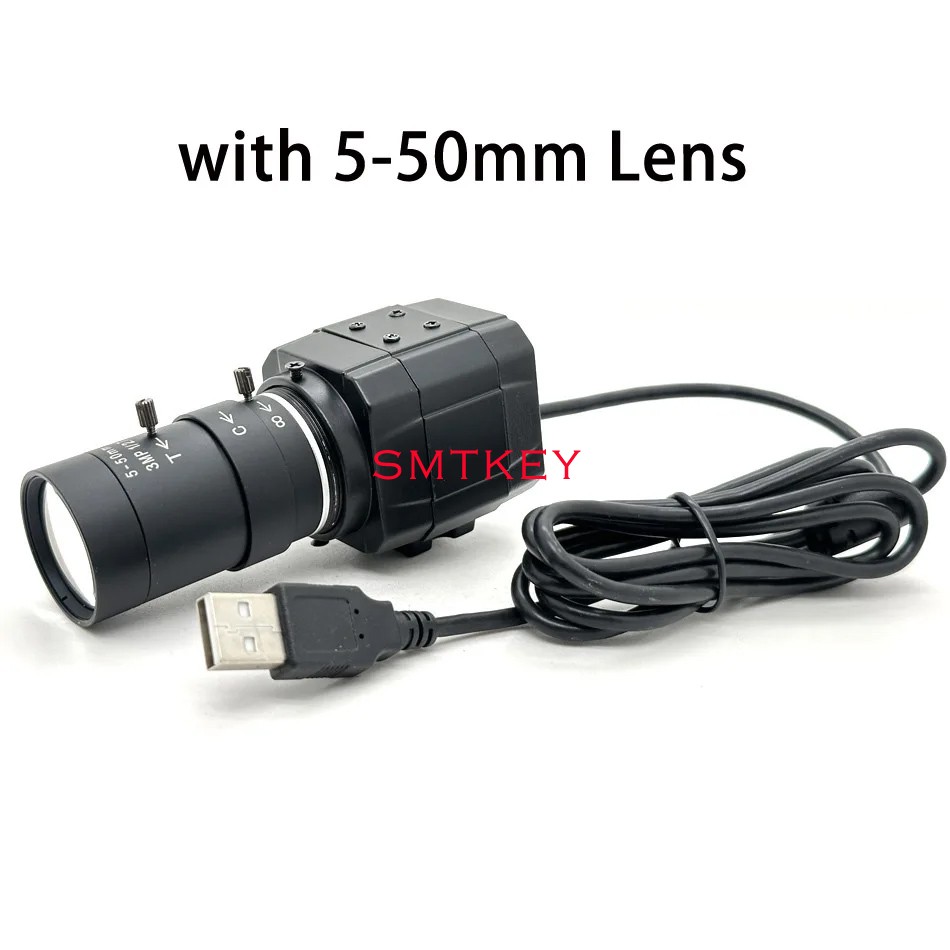

2K 4MP 4K 8MP 30fps USB Video Camera UVC OTG Fixed or Varifocal Lens 2.8-12mm Webcam Use to PC For Youtube Skype Live Teaching

Specification:

Sensor：1/2.9'' CMOSF5283

Pixel：4MP, 4 Megapixel ,2560(H)x1440 （V）Pixels

Max resolution: 2560x1440

Output image format: MJPEG

USB protocol: USB2.0 HS/FS

Support free drive protocol: USB Video Class (UVC)1.1

Audio: With Microphone

Automatic exposure control AEC: Support

Automatic white balance AEB: Support

Frame rate:

2560(H)x1440 （V）Pixels MJPEG 30fps

1920(H)x1080 （V） Pixels MJPEG 30fps

1280(H)x 720 （V） Pixels MJPEG 30fps YUV2 30fps

640(H)x480 （V） Pixels MJPEG 30fps YUV2 30fps

Adjustable parameters: brightness, contrast, color saturation, Gamma, WB

Night Vison: no

Minimum illumination: 0.1(F1.2，AGC ON)

View Angle : Wide angle

Working voltage: DC 5V

Working current: 150mA

Working temperature: -10～60℃

Board size/weight: 32X32mm

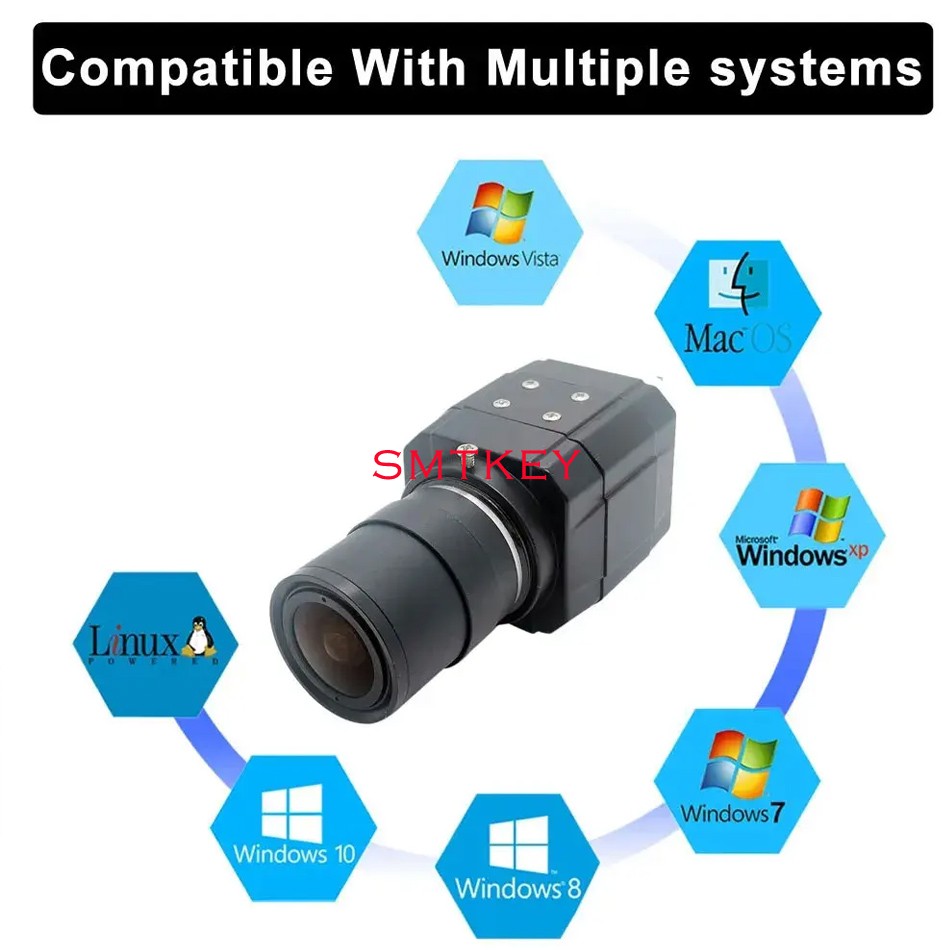

Supported systems:

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

------------------------------------------------------------------------------------------------------

8MP USB Camera Feature:Product Parameters:

Sensor chip model: 4K 8MP SONY IMX415

Photosensitive size: 1/2.8 inch

Single pixel size: 1.45um*1.45um

Photosensitive signal-to-noise ratio: TBD

USB interface type: USB2.0

Effective maximum resolution & frame rate:

MJPG (compressed format): 3840*2160/30fps.MJPG

Common resolution & frame rate: 2592*1944/30fps.MJPG 1920*1080/60fps;MJPG ,  1280*960/30fps;MJPG ,

1280*720/30fps;MJPG ,  800*600/30fps;MJPG  640*480/30fps; MJPG,  320*240/30fps; MJPG

YUV (compressed format): 800*400/20 fps/YUV,   640*480/20fps/YUV

Working voltage and current: 5V*170mA-240mA

Adapt to the working environment temperature: 0 to 60 degrees

Storage temperature, humidity: minus 30 to plus 80 degrees

Support system: Microsoft windows2000 sp2/ XP/Vista/windows7/windows8/windows10 etc.

Mac-OSx10.4.8 or above (Compliant with UVC protocol)

Linux,Android, etc. (Compliant with UVC protocol)

Application areas: Express station face camera. Scanning camera. High camera. Mobile OTG. Access control attendance, advertising machine, face recognition. Conference video. Industrial vision. Visual inspection. USB microscope. Express cabinet camera. Smart vending machine camera. Electronic weighing item identification. Etc...

Support driver-free protocol: USB Video Class (UVC)

Support OTG protocol: USB 2.0 OTG

PCB (board frame) size: 32*32mm

Power supply mode: USB BUS POWER

USB Cable: 1m
