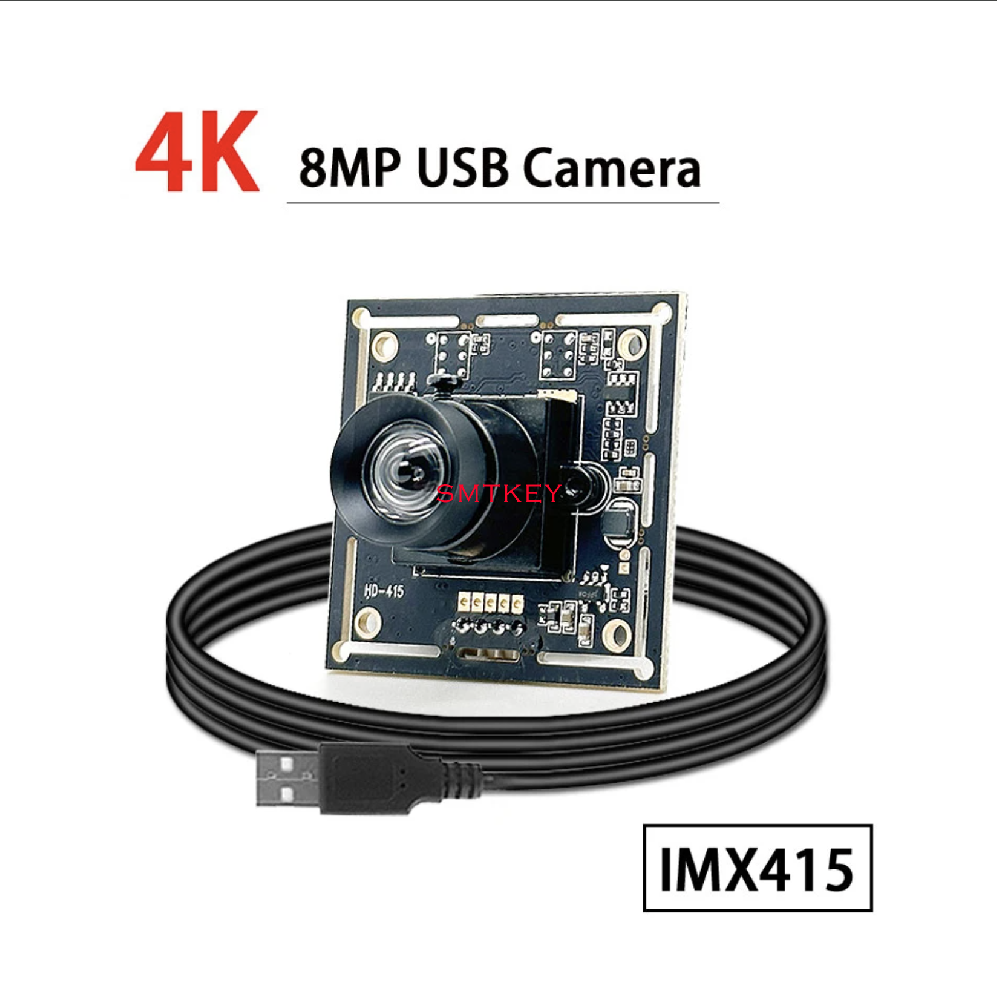

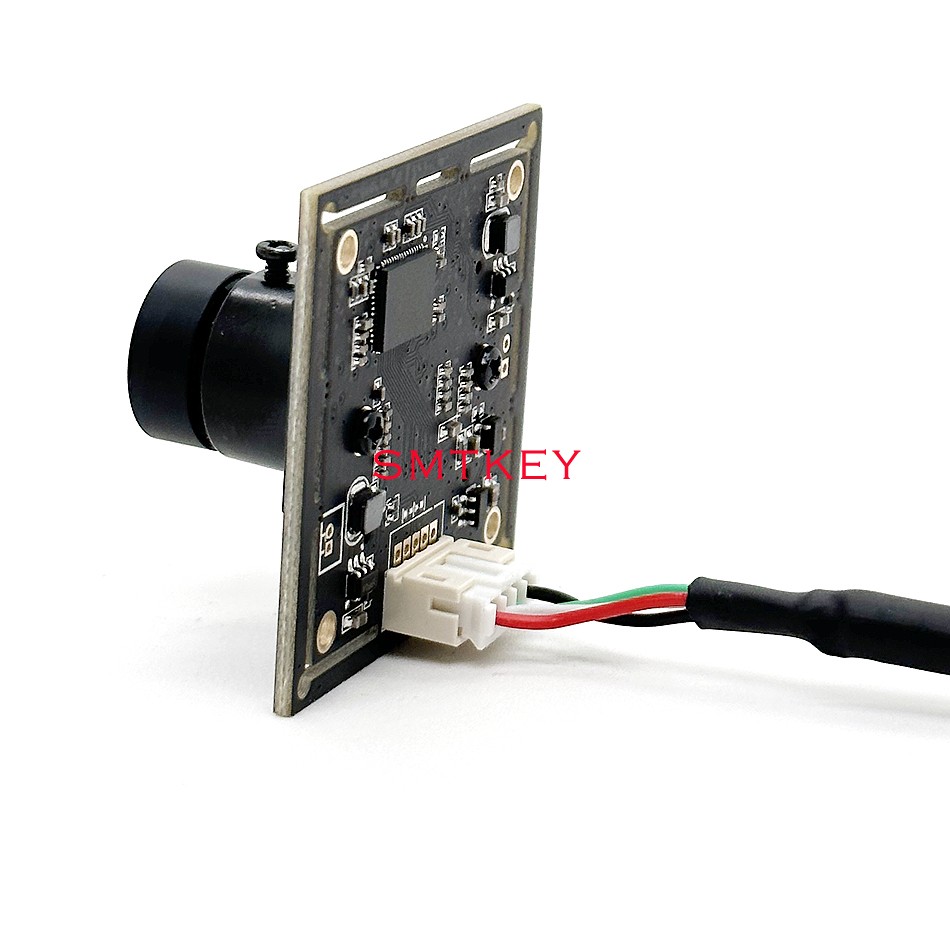

HD 4K IMX415 No Distortion lens USB 2.0 Camera Module 30FPS 3840*2160 UVC Plug And Play web USB Camera

Product Parameters:

CMOS/chip model: 4K 8MP SONY CMOS IMX415

Photosensitive size: 1/2.8 inch

Single pixel size: 1.45um*1.45um

Photosensitive signal-to-noise ratio: TBD

USB interface type: USB2.0

Effective maximum resolution & frame rate:

MJPG (compressed format): 3840*2160/30fps.MJPG

Common resolution & frame rate: 2592*1944/30fps.MJPG   1920*1080/60fps;MJPG ,  1280*960/30fps;MJPG ,

1280*720/30fps;MJPG ,  800*600/30fps;MJPG  640*480/30fps; MJPG,  320*240/30fps; MJPG

YUV (compressed format): 800*400/20 fps/YUV,   640*480/20fps/YUV

Working voltage and current: 5V*170mA-240mA

Adapt to the working environment temperature: 0 to 60 degrees

Storage temperature, humidity: minus 30 to plus 80 degrees

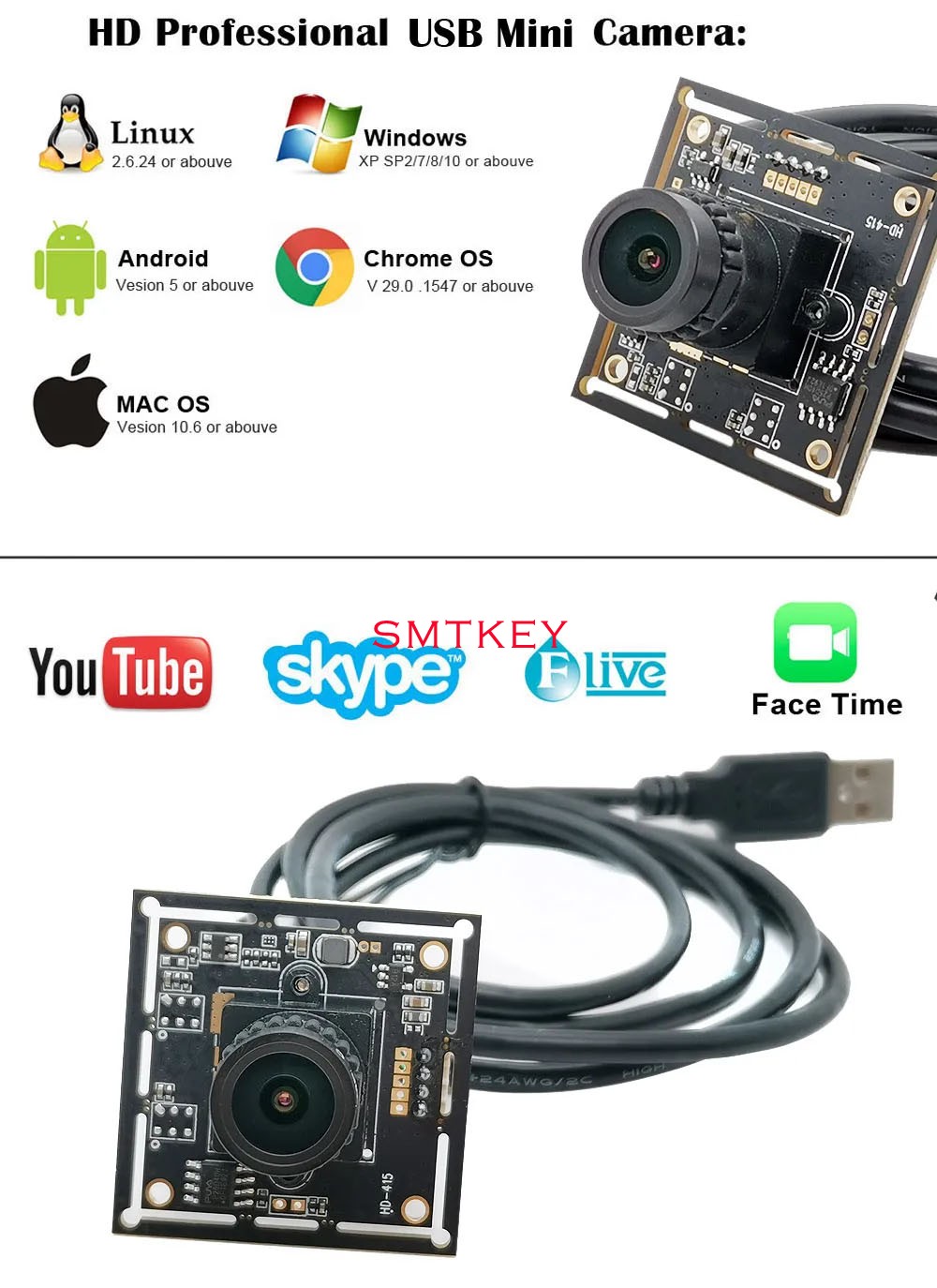

Support system: Microsoft windows2000 sp2/ XP/Vista/windows7/windows8/windows10 etc.

Mac-OSx10.4.8 or above (Compliant with UVC protocol)

Linux,Android, etc. (Compliant with UVC protocol)

Application areas: Express station face camera. Scanning camera. High camera. Mobile OTG. Access control attendance, advertising machine, face recognition. Conference video. Industrial vision. Visual inspection. USB microscope. Express cabinet camera. Smart vending machine camera. Electronic weighing item identification. Etc...

Support driver-free protocol: USB Video Class (UVC)

Support OTG protocol: USB 2.0 OTG

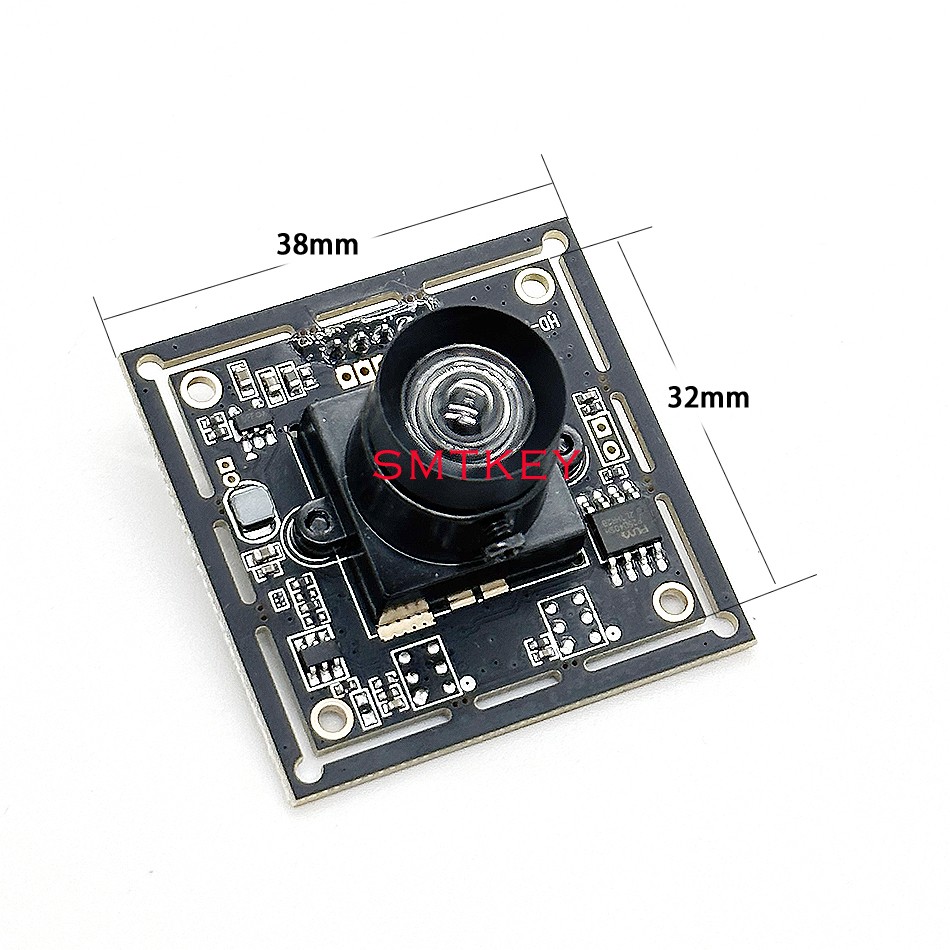

PCB (board frame) size: 38*38mm, (compatible with 32*32)

Power supply mode: USB BUS POWER

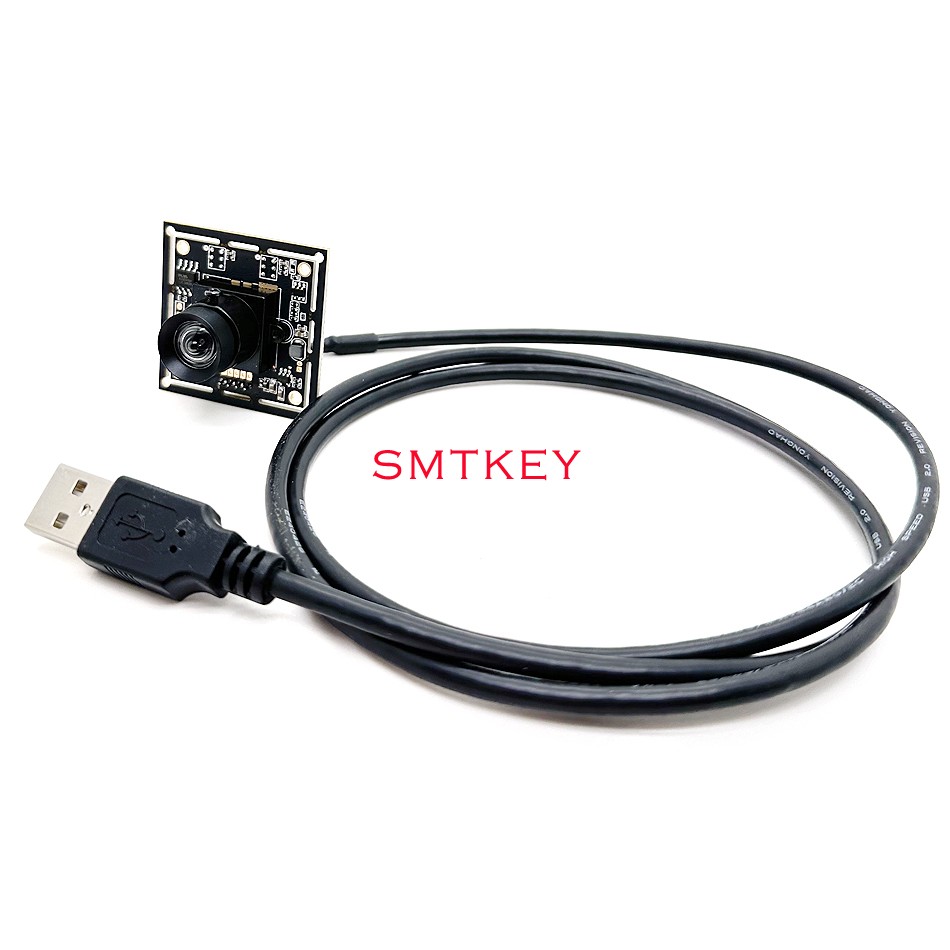

USB Cable: 1m/2m/3m can choose
