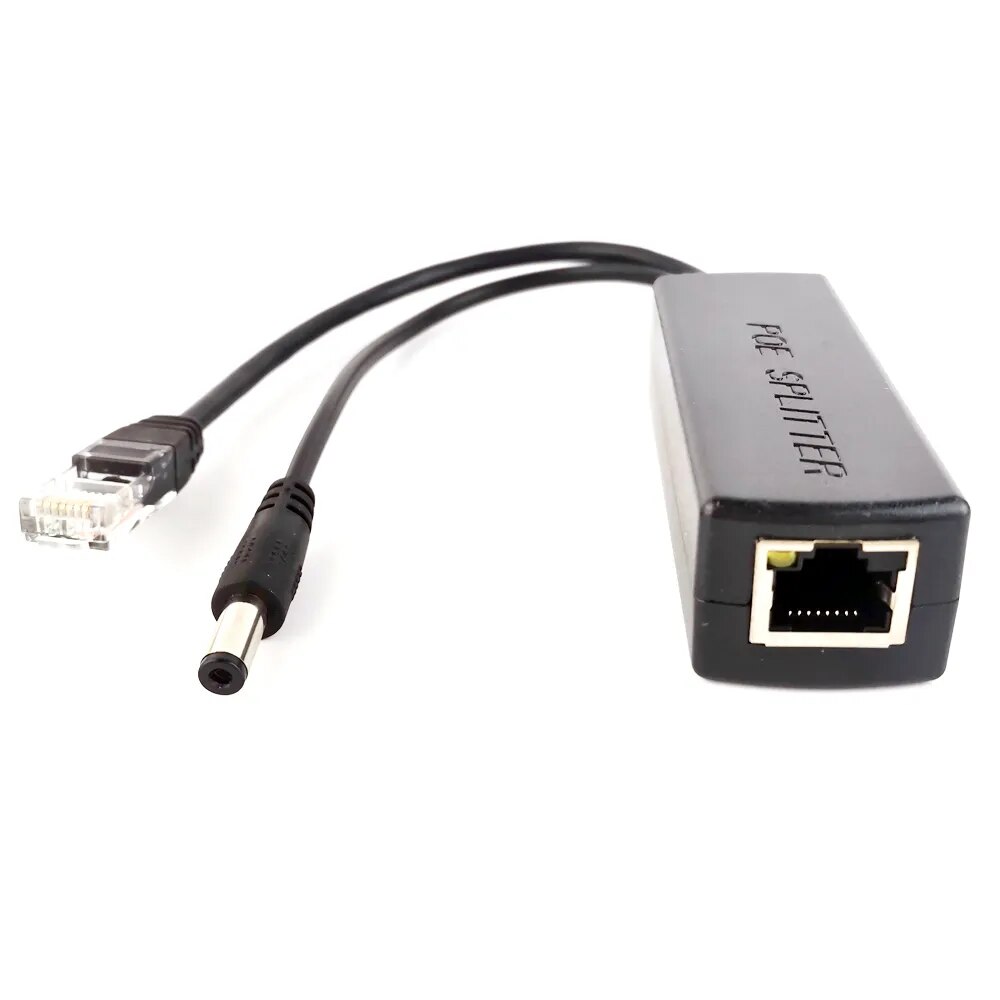

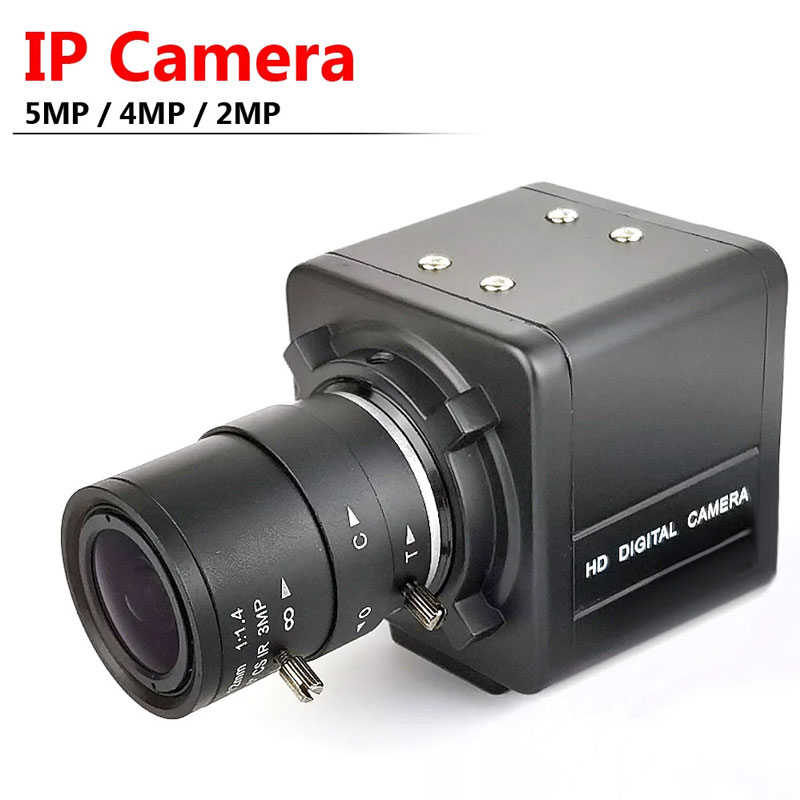

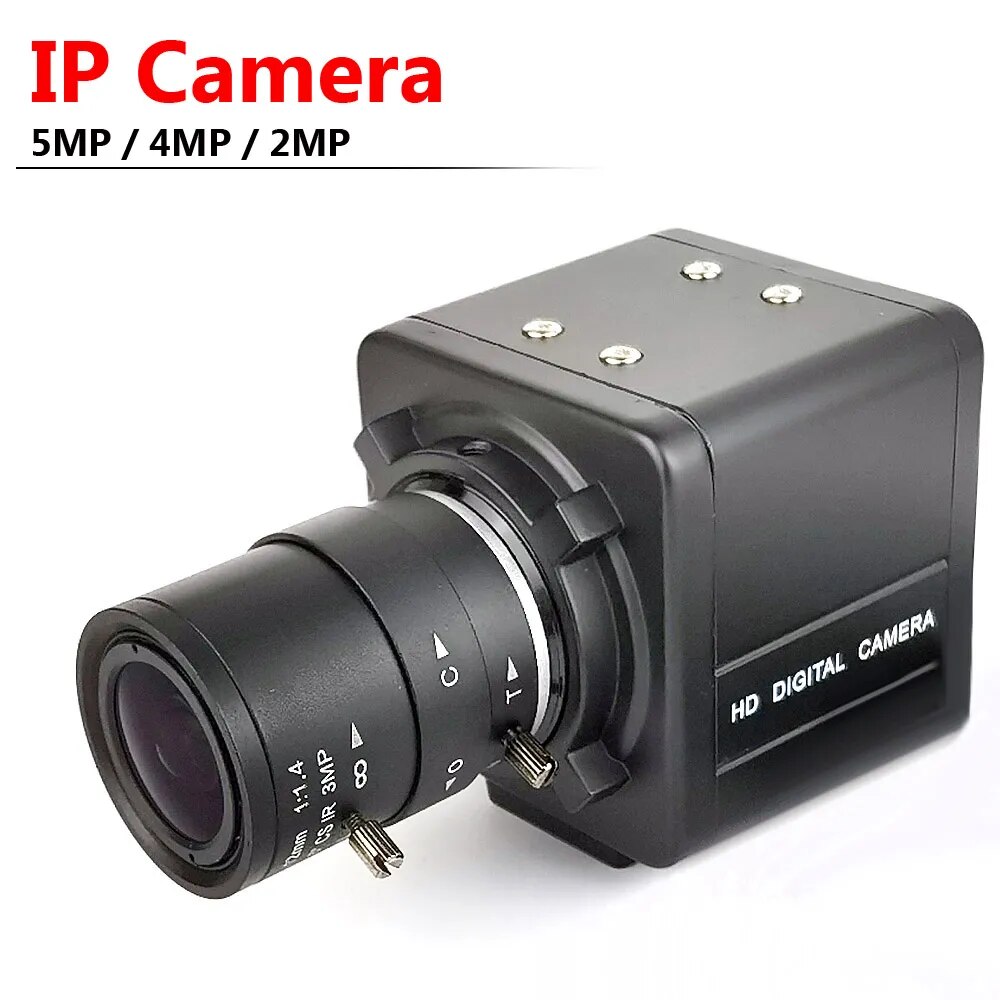

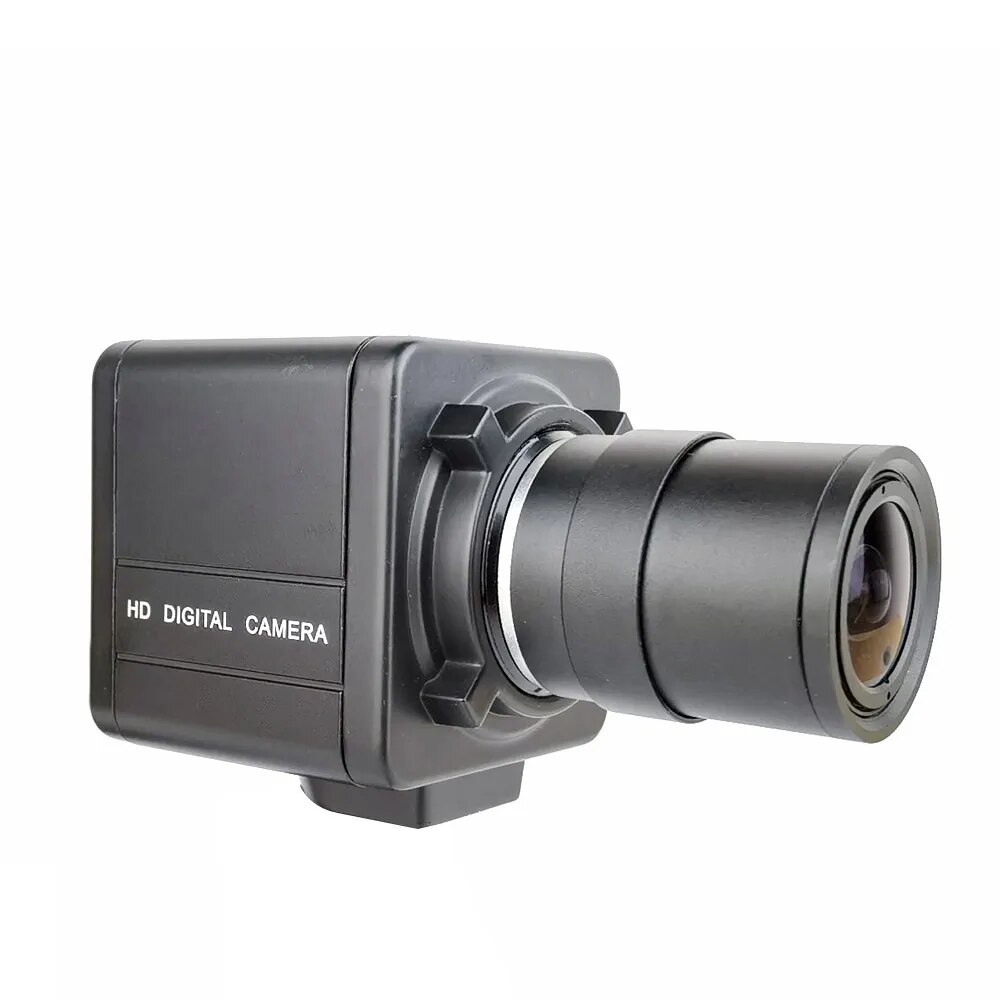

SMTKEY 5MP Onvif Motion Detection IP Camera 2.8-12mm CS Mount manual lens DC 12V network IP Camera with 48V poe splitter cable

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Features:1080P HD resolution,clear and fine images;Support 2D/3D noise reduction,digital wide dynamic;Advanced H
Products Inquiry

Product Details

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Features:

1080P HD resolution,clear and fine images;

Support 2D/3D noise reduction,digital wide dynamic;

Advanced H.265+/H.265X video compression,Super low rate,high definition quality of image;

Support ONVIF;access third party;

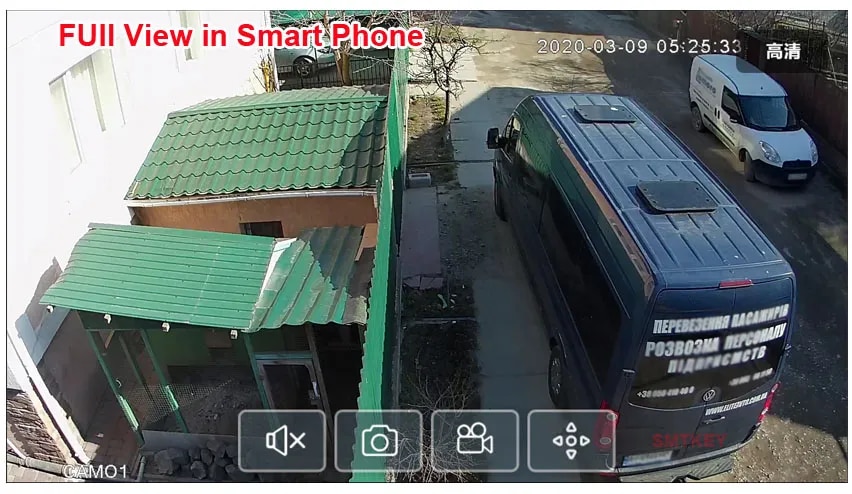

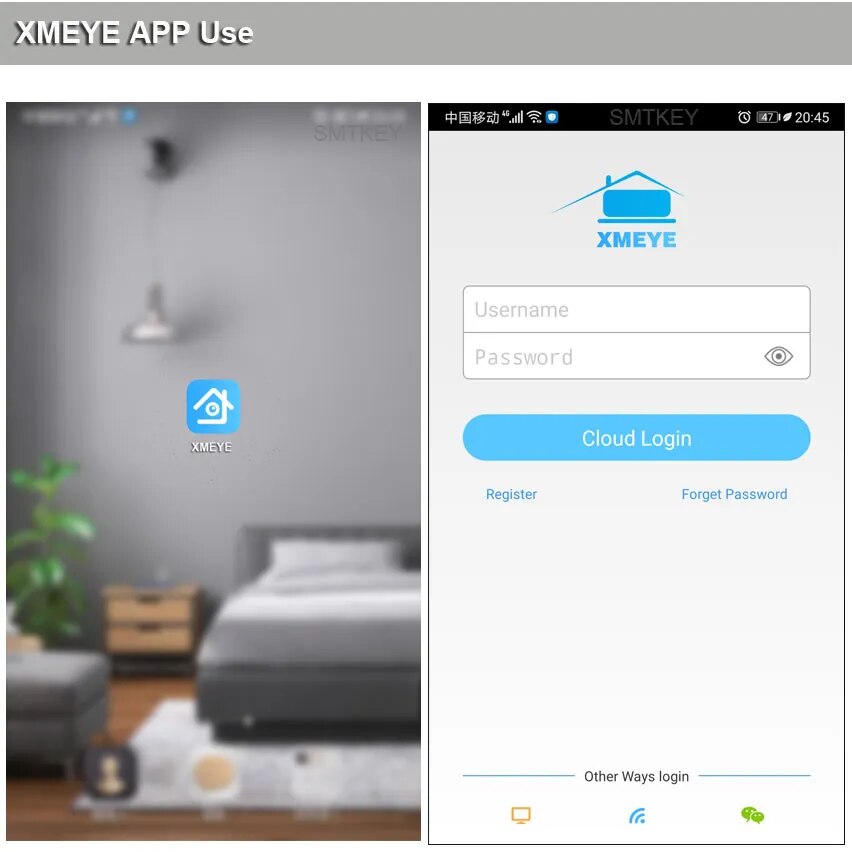

Support various mobile monitoring(iPhone,Android);

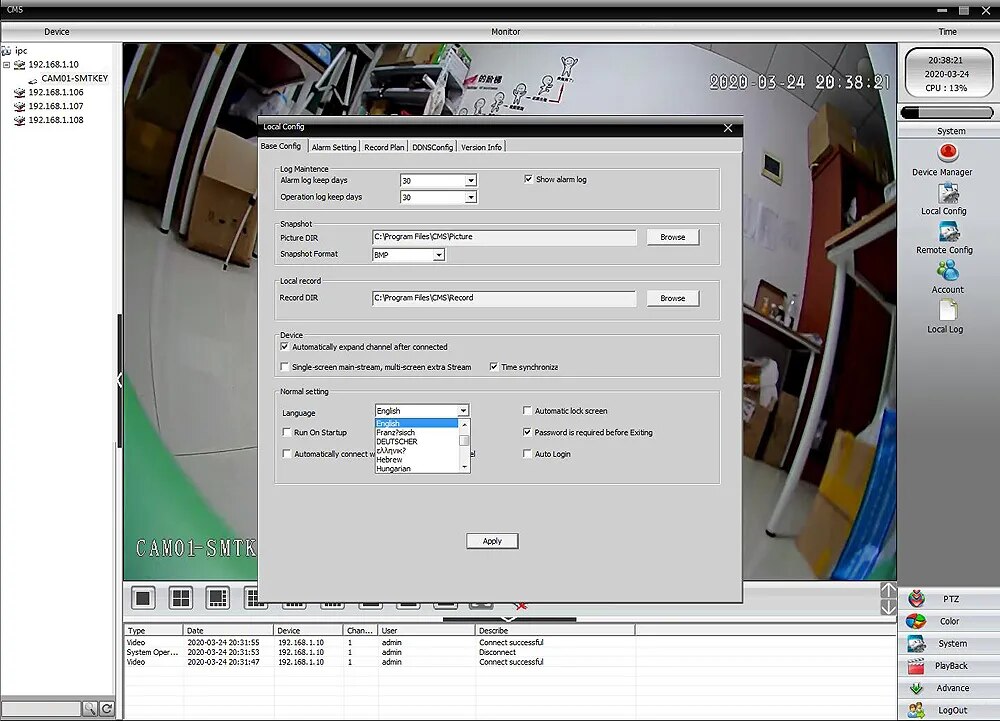

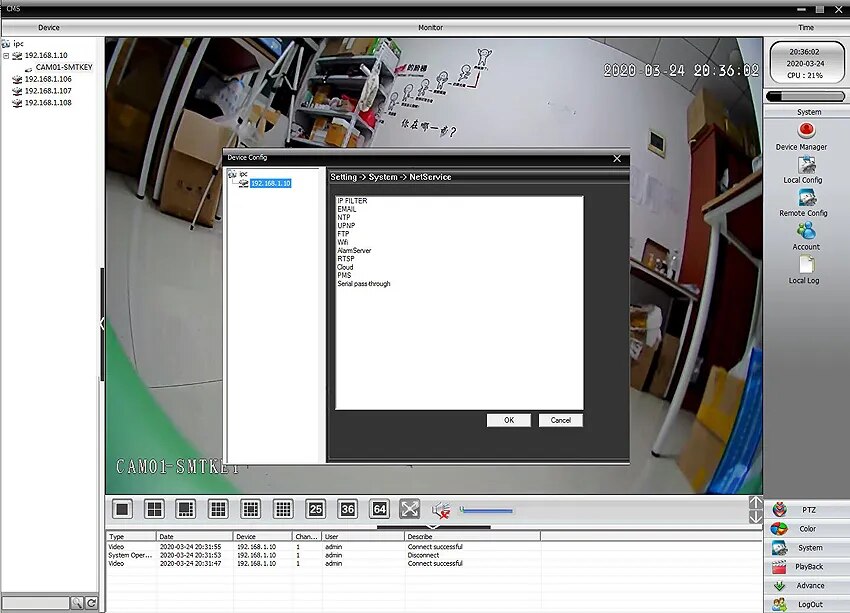

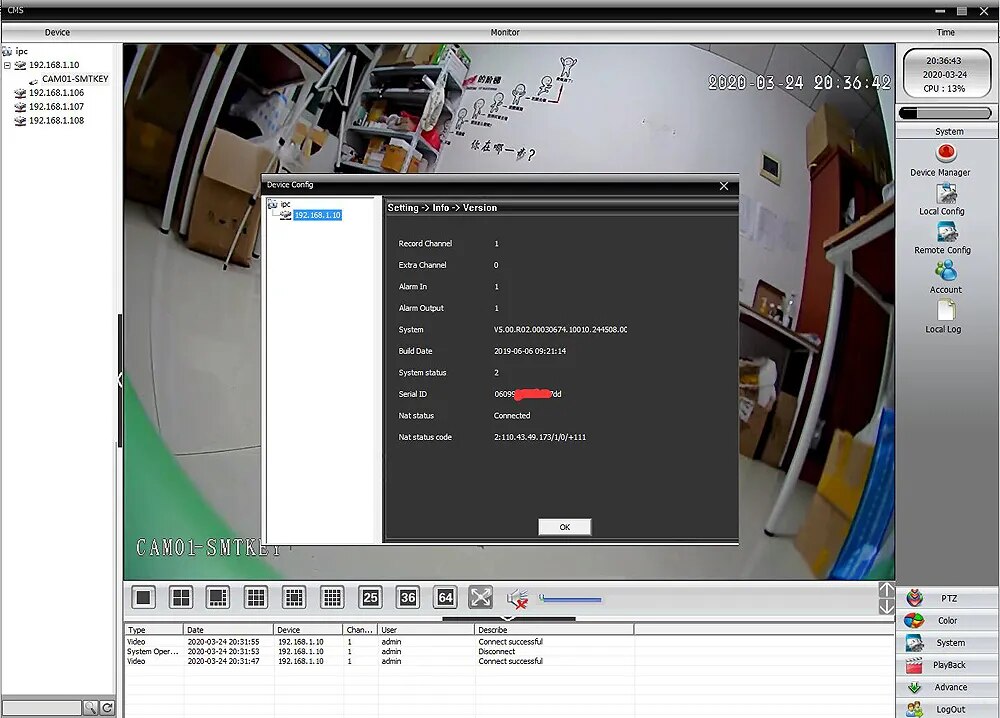

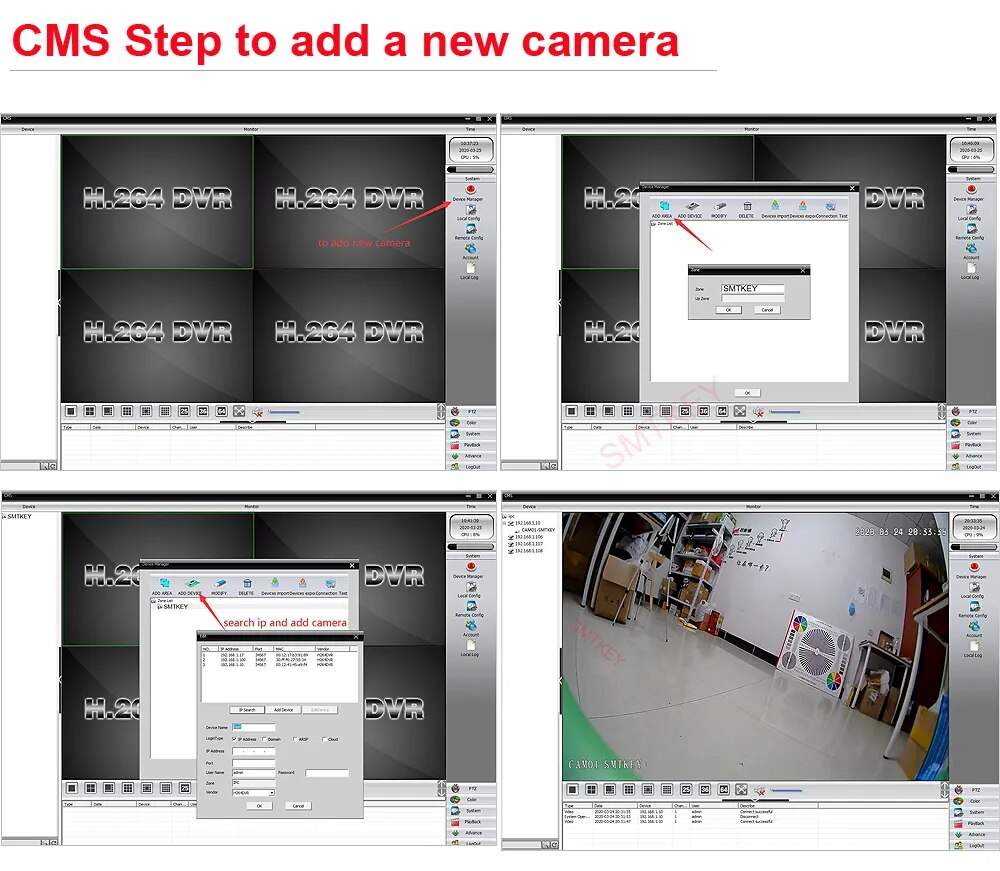

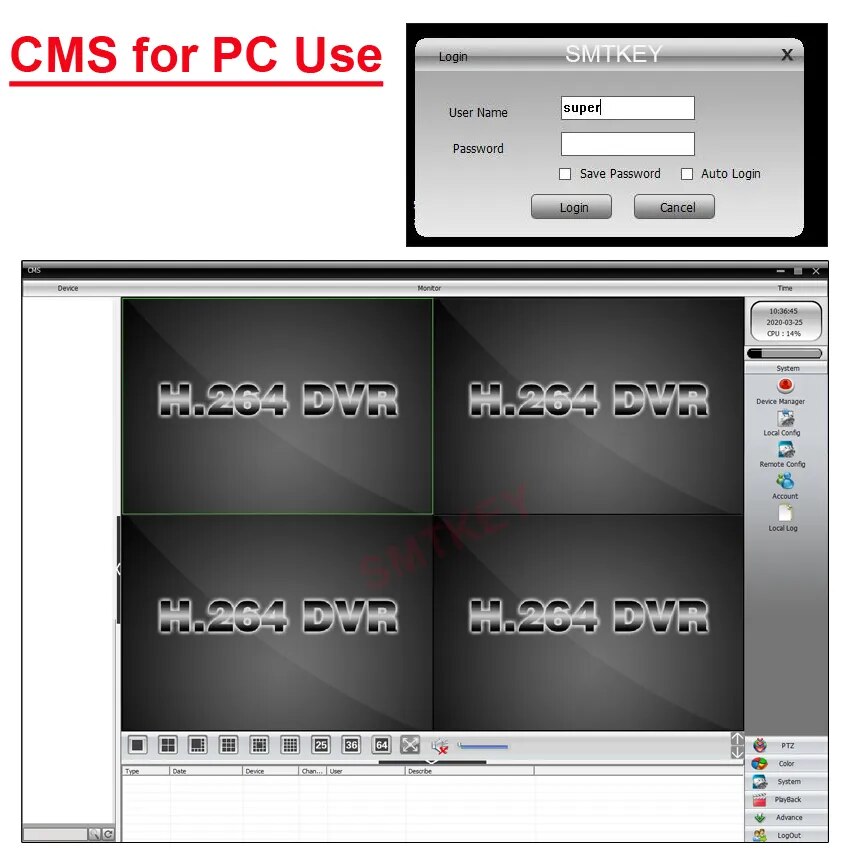

Provide web、CMS、center platform management software MYEYE,

Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

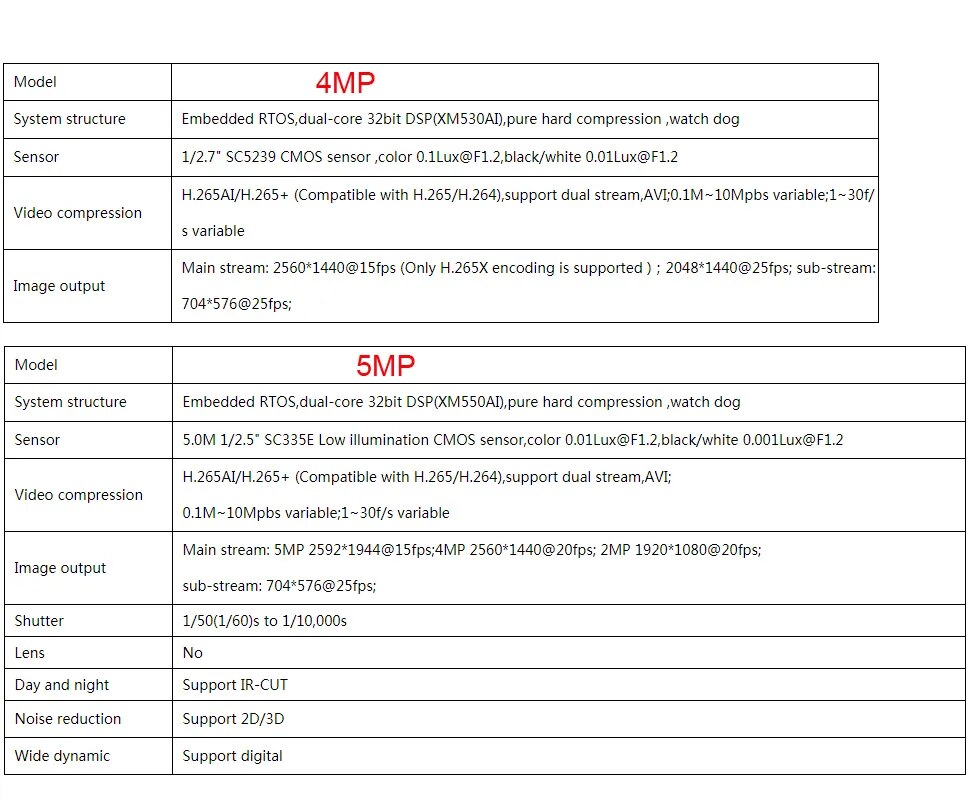

Specification:

System structure

Embedded RTOS,dual-core 32bit DSP

Sensor

2.0M 1/2.9" CMOS sensor ,color 0.1Lux @ F1.2,black/white 0.01Lux @ F1.2

Video compression

H.265+/H.265X,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable

Image output

Main stream: 1920*1080 @ 20fps,1280*720 @ 25fps; sub-stream: 704*576 @ 25fps;

Shutter

1/50(1/60)s to 1/10,000s

Lens

HD 2.8-12mm Lens or options lens choose

Day and night

650nm filter glass for daytime

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Audio compression

G.711,support bidrectional talk,audio&video synchronization

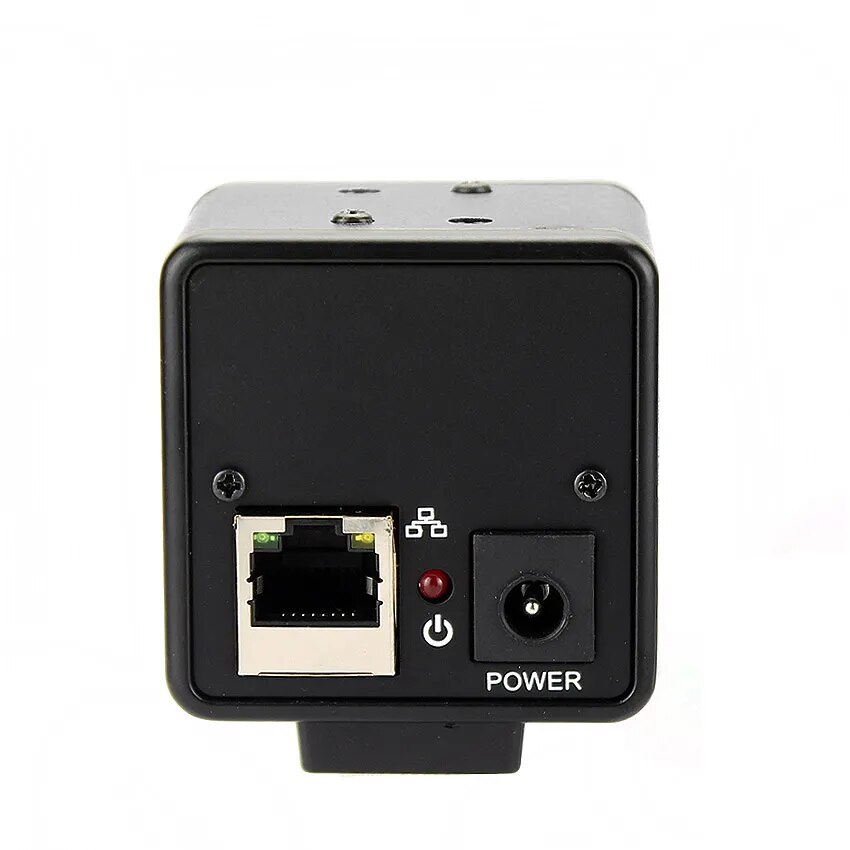

Network interface

1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

Singal interface

One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR

Reliability

Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing

Other function

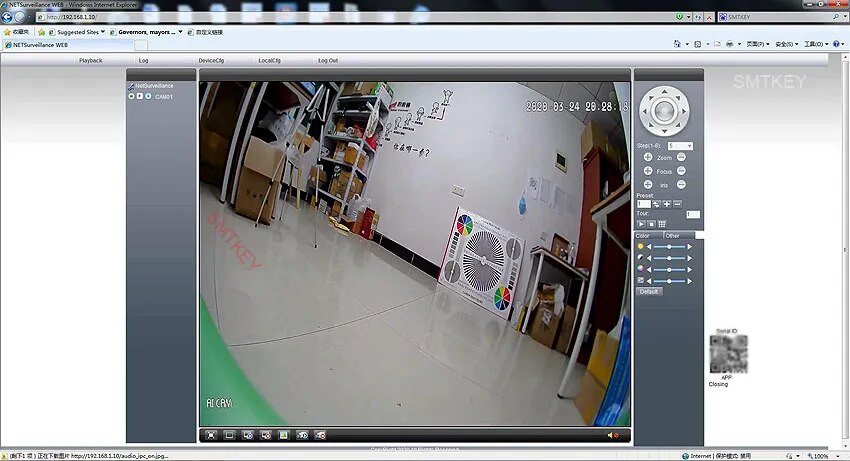

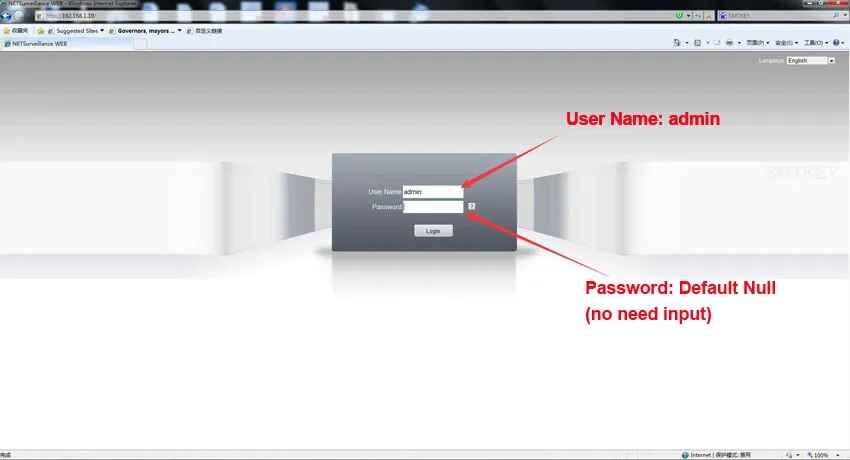

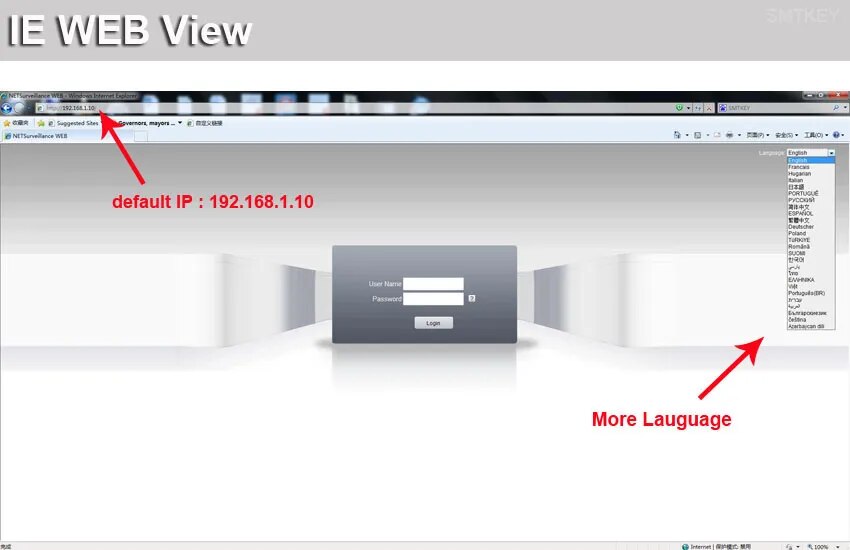

Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture;united remote client monitoring sofaware、MYEYE;perfect SDK

ONVIF

Support

Mobile monitoring

Support multiple mobile monitoring(iOS,Android)

Power

DC12V/2A input, power consumption:≤3W,

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


-----------------------------------------------------------------------------------------
