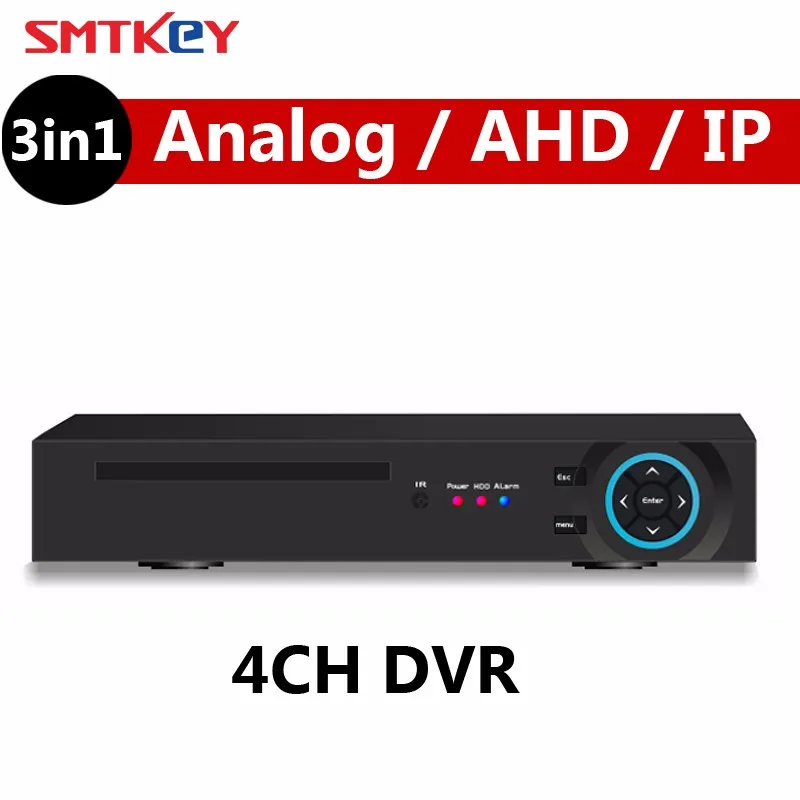

4CH 1080P AHD-H DVR 3 in 1 AHD / Analog / IP P2P XMEYE CCTV DVR

$62 $74
售出
0
评论
0
Quantity:
10000
Weight:
0gram
Sales time:
2019-04-18

-1

 IMG_3768

Features:

 1) Step on the Internet:Support p2p cloud(www.xmeye.net),no need to router mapping,just 1 step go to the Internet with MHK cloud technology.

 2) Compression algorithm ideal:H.264 High Profile.

3 ) Playback quality:Support 4ch AHDM/AHDL/AHDH, realtime record,multiple channel realtime playback synchronous.

4 ) Main and Sub Stream: Dual Stream, Main stream is for local record , sub stream is for network transmission.

5 ) Mobile monitor:Support iPhone, Windows Mobile, BlackBerry, Symbian,Android mobile monitor

 6) Display:Support TV, VGA ,HDMI output at the same time.

 7) Operation interface:Similar with WINDOWS, easy and convenient to operate it.

 8) Network:Powerful Network service(Support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP right, IP search, ALARM CENTER etc...), WEB, mobile CMS, SDK...

 9) Browsers:Support IE, Chrome,Firefox and Safari.

 10) Remote Access:Built-in DDNS(ARSP),dyndns,oray, myq-see, no-ip etc....

11 ) Device port:Support 1 SATA,can connect 1 maximum 4TB HDD,support 2 USB 2.0 port,can do the USB mouse,backup,burn,upgrade etc operation stably.

12 ) Differentiation: twenty multinational language , easy to achieve product differentiation.

 13) Others: With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.





Specification


Model

A6704MH / A6708MH

System


 Hi3520 4CH / HI3521 8CH

Operation System

Embedded LINUX

System Resource

Multiple channels realtime recording,playback,network operation and USB backup

Screen

User Interface

GUI,on-screen menu tips

Screen Display

1/4 screen

Video

Standard

PAL(625 line,50f/s); NTSC ( 525 line,60f/s)

Compression

H.264(High Profile)

Display Quality

TV: D1   VGA: High definition,HDMI

Playback Quality

4ch AHDM/AHDL/AHDH

Encode Capacity

200/240fps AHDM/AHDL

Only Analog(DVR)

 4ch AHDM(720P) or 4ch AHDL(960H) or 4ch AHDH(1080P)

 Hybrid dvr nvr

 4ch AHDM(720P) + 4ch 720P

 Only nvr

 2ch 1080p or 2ch 720p

Audio

Compression

G.711A

Talk back

Support

Record&

Record Mode

Manual>Alarm>Video Detection>Timing

Playback

Local Playback

1 ~ 4 channels


Record Search

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage&

HDD Occupation

Video:AHDL(960H): 30G / day / channel   AHDM(720P): 40G / day /channel   1080P: 80 G/ day/channel

Backup
